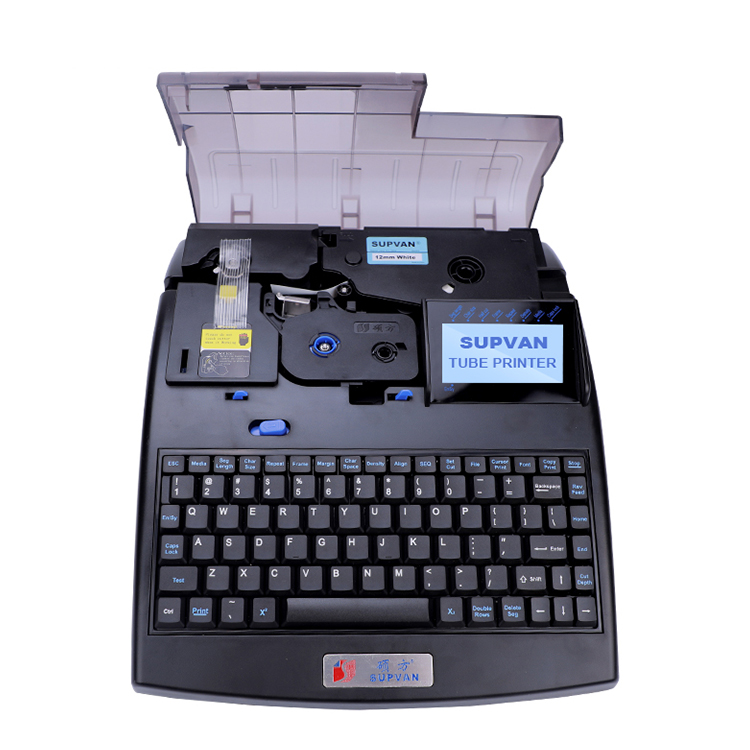

Supvan tube printer TP86E
Supvan tube printer TP86E

Different printing materials: tube/ heat shrink tube (2.5-6mmdiameter), label ( 6mm/9mm/12mm width),4mm plate.Large white back-lit LD display ,up to 2 lines display.Automatic feed/clean/ribbon pre tighten/half cut/full cut.78-key standard keyboard makes operation easily.Repeat, sequence and copy print functions can save your time.PC connect,able to import Excel for batch printing.Large internal storage capacity can store up to 64 files.Multilingual operating system, supporting 16 system languages, withspecial key for multilingual input.Higher printing speed, improved work efficiency.

DETAILS

Supvan tube printer TP86E



PARAMETER
Printing method:

Thermal transfer

Resolution:

300dpi

Printing speed:

Tube:50pcs/min,20mm/pcs,Label:50pcs/min,20mm/pcs

Ink Ribbon:

Black:100m,White:80m,Red:80m

System language:

16

Character size:

Label:1-7,Tube:1-5

Repeat:

1-200

Media cutting method:

Automatic half-cutting, Automatic full-cutting

Styles:

Frame, Underline, Superscript, Subscript,

Media type:

Tube, Heat shrink tube, Label

Keyboard:

78keys standard keyboard

Dimension:

319mmx273mmx93mm(WXH)

Weight:

3.2kg(printer only)

Power supply:

AC adapter(input voltage: AC 100V-240V 50/60Hz)

Display:

White back light LCD display;2 lines editing is possible

Internal memory:

Up to 64 Files

External memory:

4G SD card and card reader

Operating environment:

15℃-35℃

PC interface:

USB2.0 Full-speed, Professional editing software

Connectivity:

APP and PC connected

Tube:

PVC tubeФ2.5-Ф6mm,Heat shrink tubeФ2.5-Ф6mm

Label:

Exclusive cassettes(White, yellow, silver)Widths:6mm, 9mm,12 mm.Length:16m

Insert Stick Plate:

Width:4mm Plate
